*Model：ABMSET9654-4、ABMSET15586-7
*Supply Voltage24V，Rated Power30W
*Available for AB-B、Pro-B、VAL、CXL、SCUR series
*Supply Voltage24V，Rated Power30W
*Available for AB-B、Pro-B、VAL、CXL、SCUR series
UV LAMP RATED LIFE 10000 HOURS

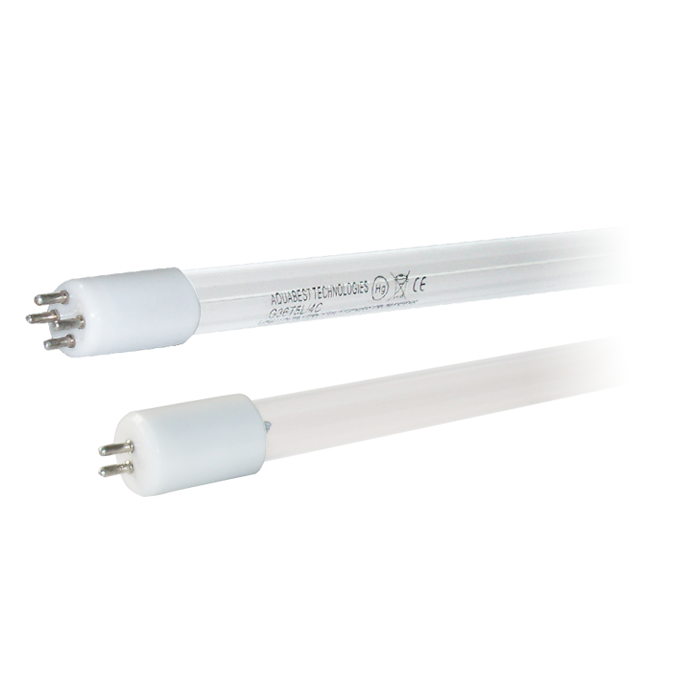

UV Lamp
Wavelength 185nm and 254nm.Single end with four pins and double end with two pins

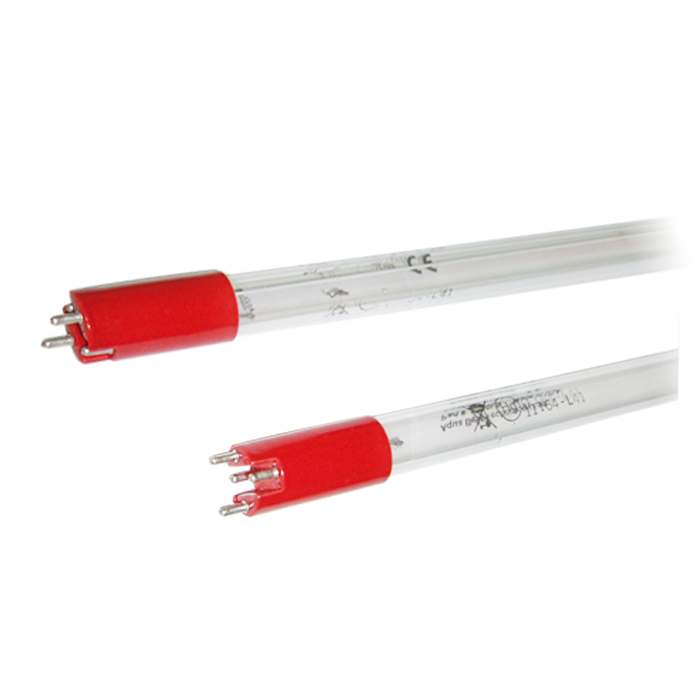

UV Lamp
Wavelength 185nm and 254nm.Single end with four pins and double end with two pins
Life Cycle For 1 Year
Ballasts Controller
*Model Part#:BAC100-E*0.42A 100V-250V/50-60Hz
*Application: Splenvue-Electrum series

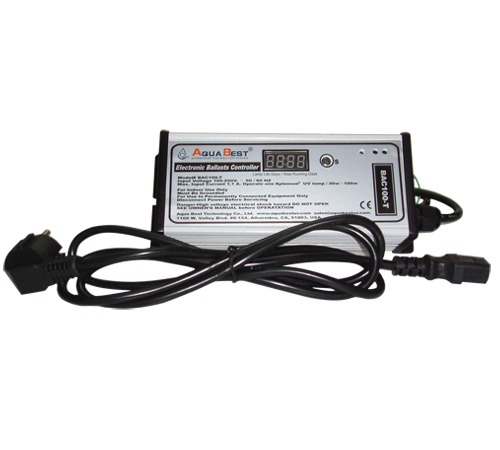

*Model Part#:BAC100-T
*1.1A 100V-250V/50-60Hz
*Application: Splenvue-Titanium series
Ballasts Controller
*Model Part#:BAC100-E*0.42A 100V-250V/50-60Hz
*Model Part#:BAC100-T
*1.1A 100V-250V/50-60Hz
*Application: PA series
Ballasts Controller

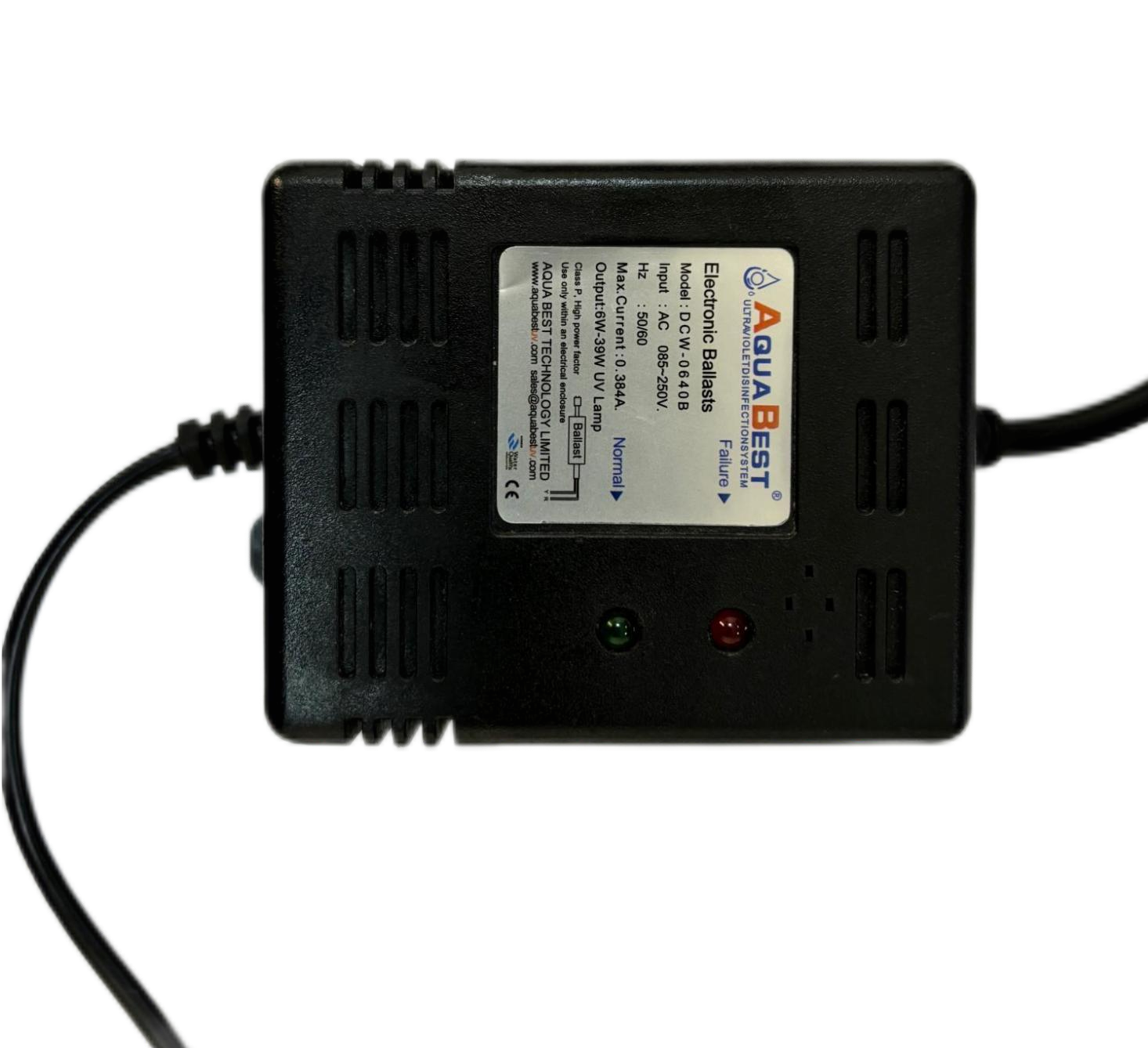

*Model Part#:DCW-0640B*Input Voltage 110v or 220v. 50/60 Hz.
*Max. Input Current 0.384A.
*UV Lamp / 0-39W
*Application: AB series
Ballasts Controller
*Model Part#:EB-0624*Input Voltage 110v or 220v. 50/60 Hz.
*Max. Input Current 0.384A.
*UV Lamp / 6W-24W
*Application: LT series
Ballasts Controller

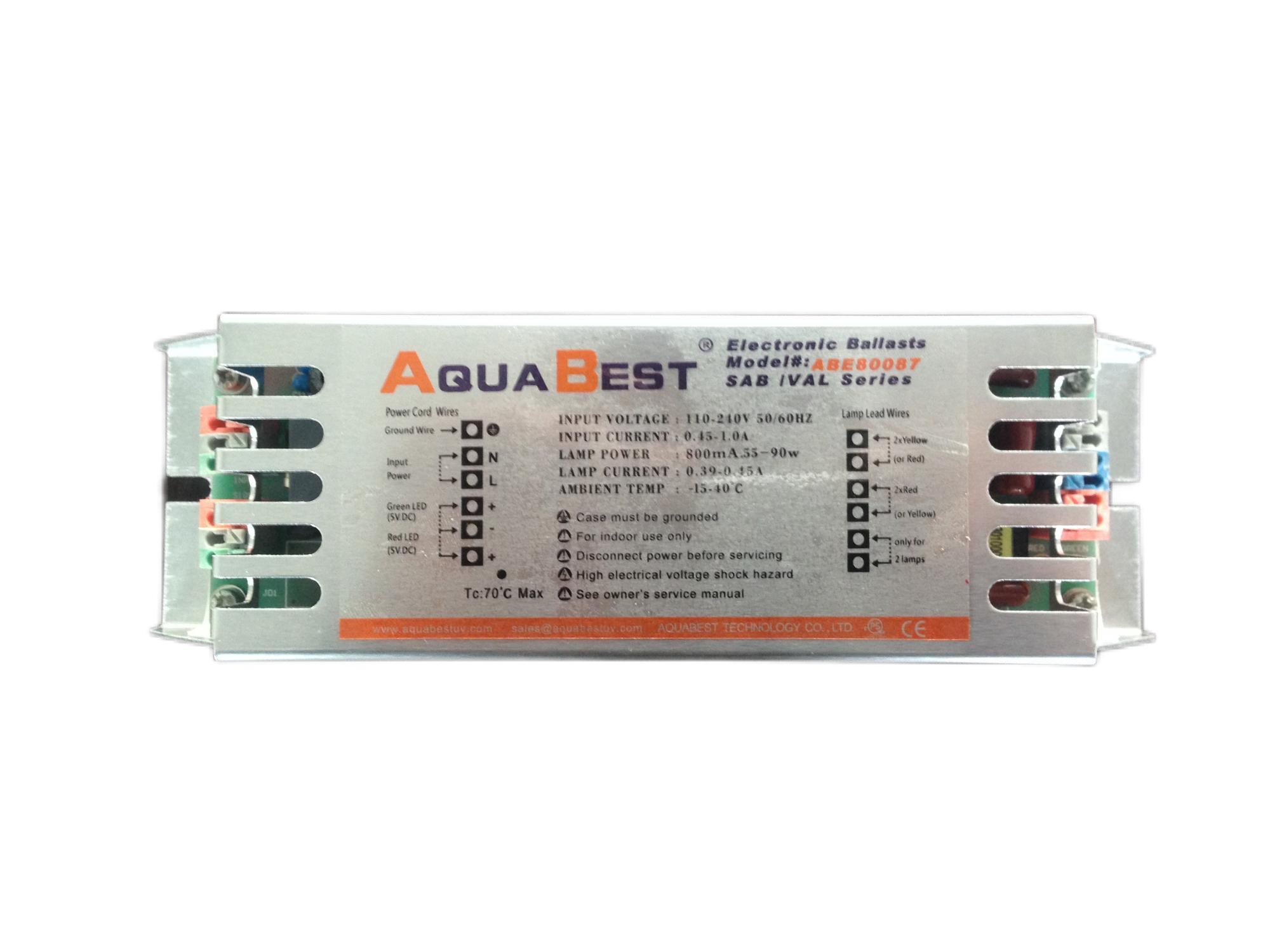

*Model Part#:ABE80087 0.92A.*Input Voltage 100V-250V./50-60Hz.
*Max. Input Current 0.92A.
*UV Lamp / 55W-90W
*Application:CXL.PB.LT series
Ballasts Controller

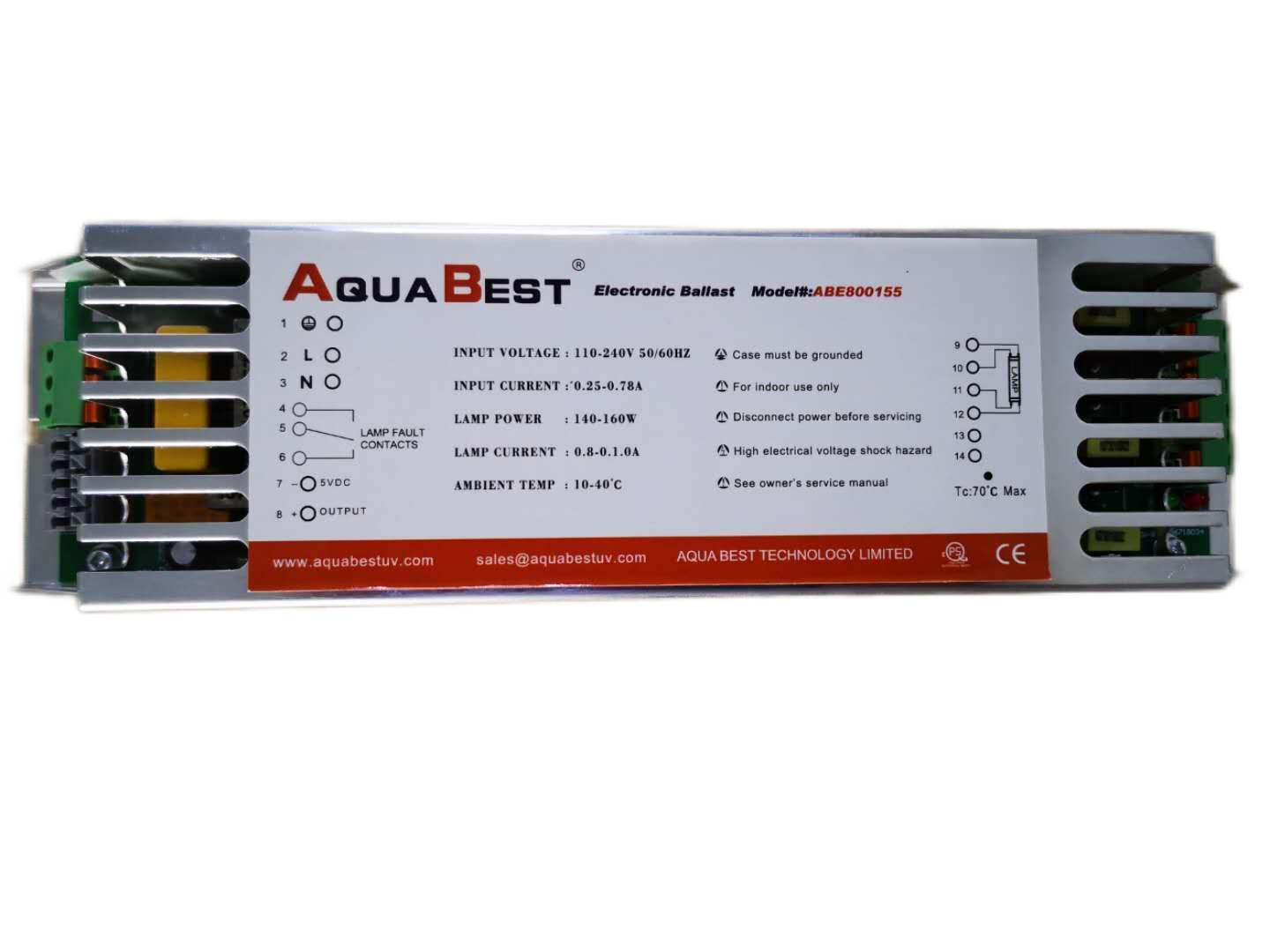

*Model Part#: ABE800155*Input Voltage 230V-250V./50-60Hz.
*Max. Input Current 0.75A.
*UV Lamp / 140W-160W
*Application:CXL series
Ballasts Controller

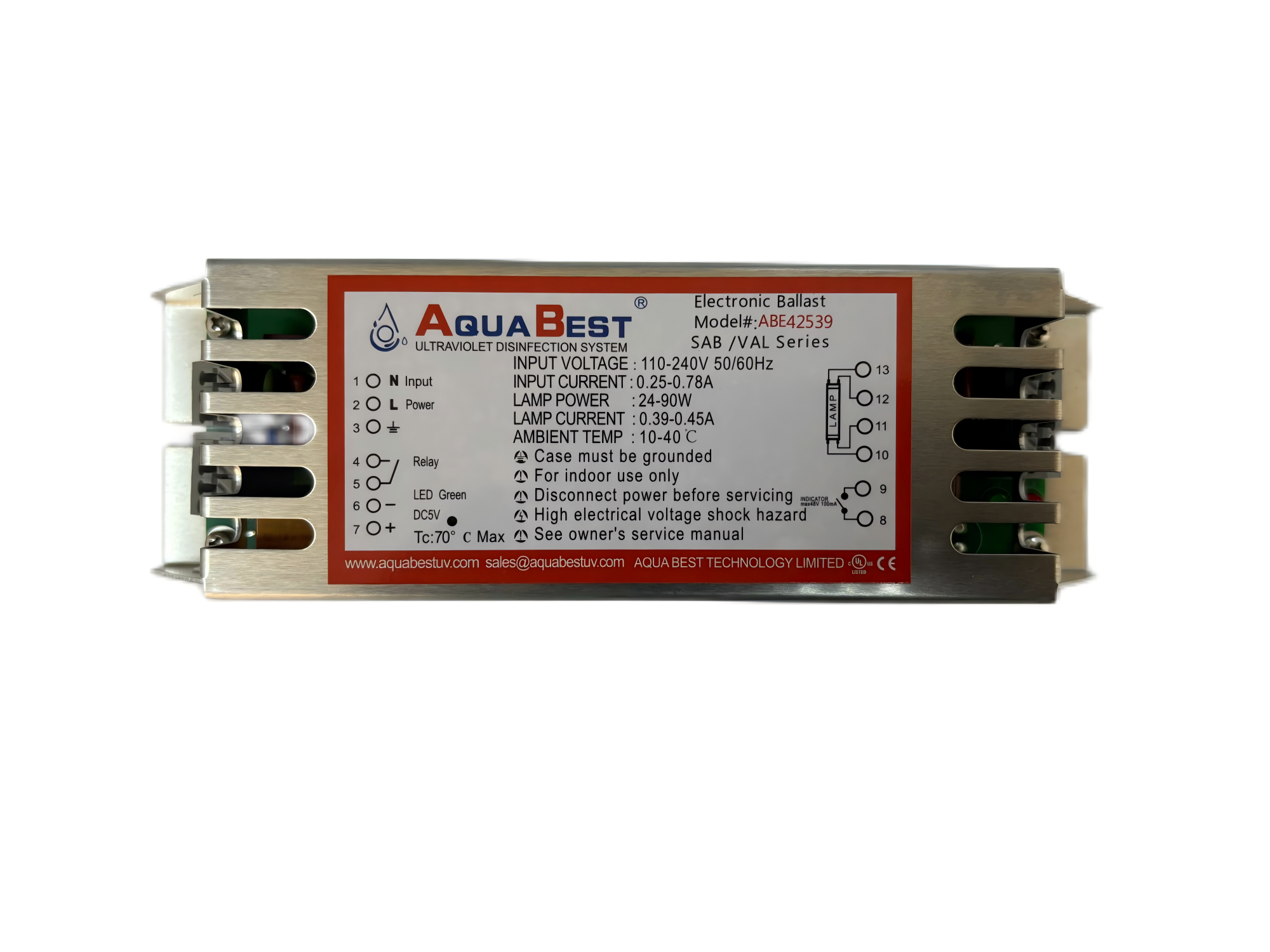

*Model Part#: ABE42539*Input Voltage 110V-240V./50-60Hz.
*Max. Input Current 0.45A.
*UV Lamp / 24W-90W
*Application:AB-12B~AB-100B series
Life Cycle For 1 Year
Products Certificate
Welcome to AQUA BEST TECHNOLOGY LIMITED. for Water Treatment Website.
Our company offers you a wide range of high quality UV systems and parts. Importantly, we can offer you the customized products. Our product has such advantages:effective,economical,safe,fast&easy automatic, chemical free and you can find it in any occasion including drinking water ,food processing,medical,industries. Thank you for your interest and confidence.
